gpu passthrough on proxmox and linux guest machine Link to heading

This post is about how to set up gpu passthrough on proxmox and linux guest machine. I usually use my gaming rig for homelab malware reverse engineering Link to heading

(on Proxmox host terminal) Link to heading

enable iommu Link to heading

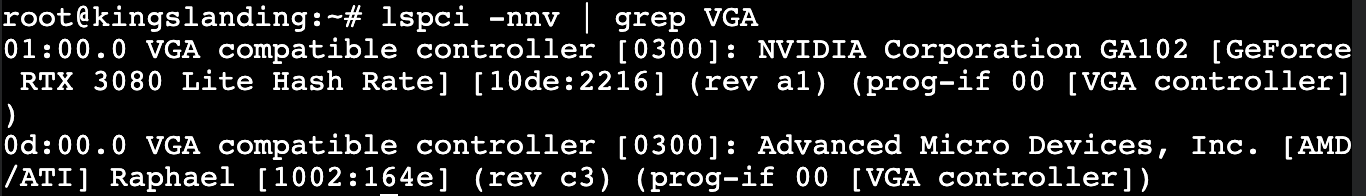

find initial address of gpu on pci Link to heading

lspci -nnv | grep VGA

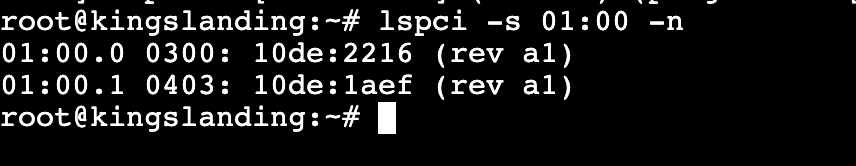

find pci id with Link to heading

lspci -s 01:00 -n


sort it so we can add to the grub file later Link to heading

10de:2216, 10de:1aef

on grub file

nano /etc/default/grub

to the line of

GRUB_CMDLINE_LINUX_DEFAULT="quiet"

add this

GRUB_CMDLINE_LINUX_DEFAULT="quiet intel_iommu=on pcie_acs_override=downstream,multifunction video=efifb:off video=vesa:off vfio-pci.ids=<sorted-pci-id> vfio_iommu_type1.allow_unsafe_interrupts=1 kvm.ignore_msrs=1 modprobe.blacklist=radeon,nouveau,nvidia,nvidiafb,nvidia-gpu"

update grub with update-grub

then add vfio to allow passthrough. on nano /etc/modules, add this

vfio
vfio_iommu_type1
vfio_pci
vfio_virqfd

save and update config with update-initramfs -u -k all

on guest machine Link to heading

  1. dont add the pci device to the device manager first
  2. install kernel dev sources with sudo apt-get install linux-headers-$(uname -r)
  3. install build essential and full nvidia meta package with sudo apt install build-essential nvidia-driver-full

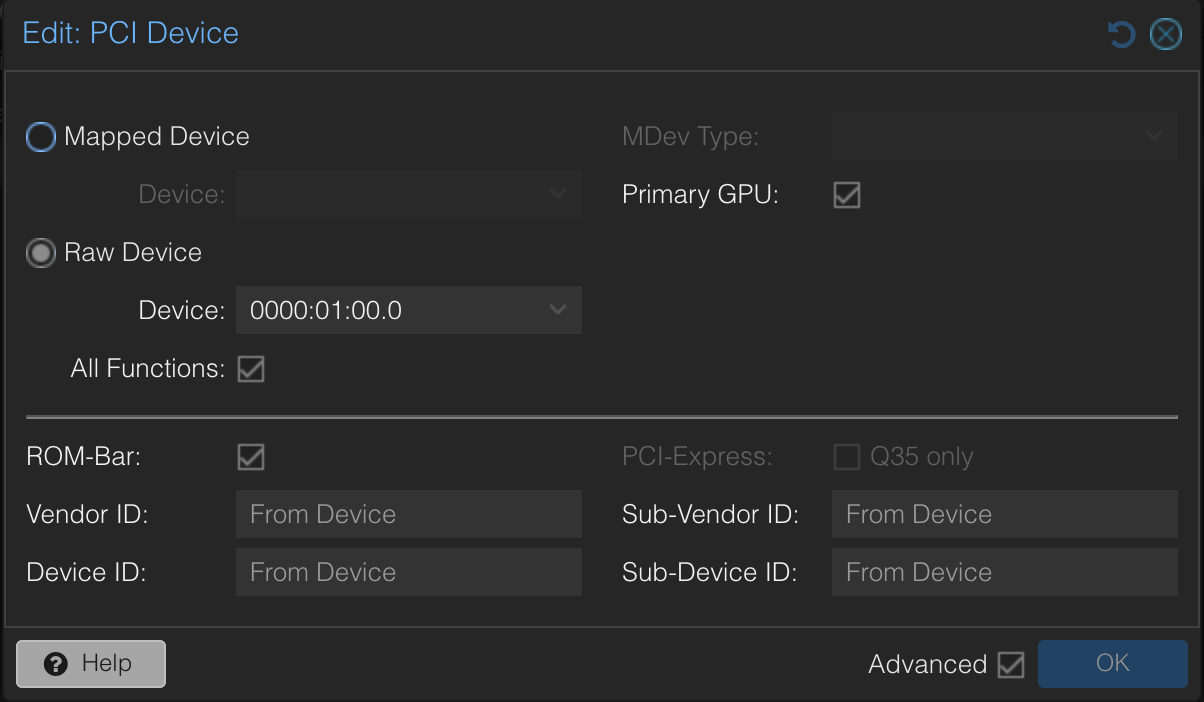

  4. shutdown guest vm, add pci device with the address found earlier 1785518dd08a8d311d4897f6cd6ebf94.png enable primary gpu and all functions

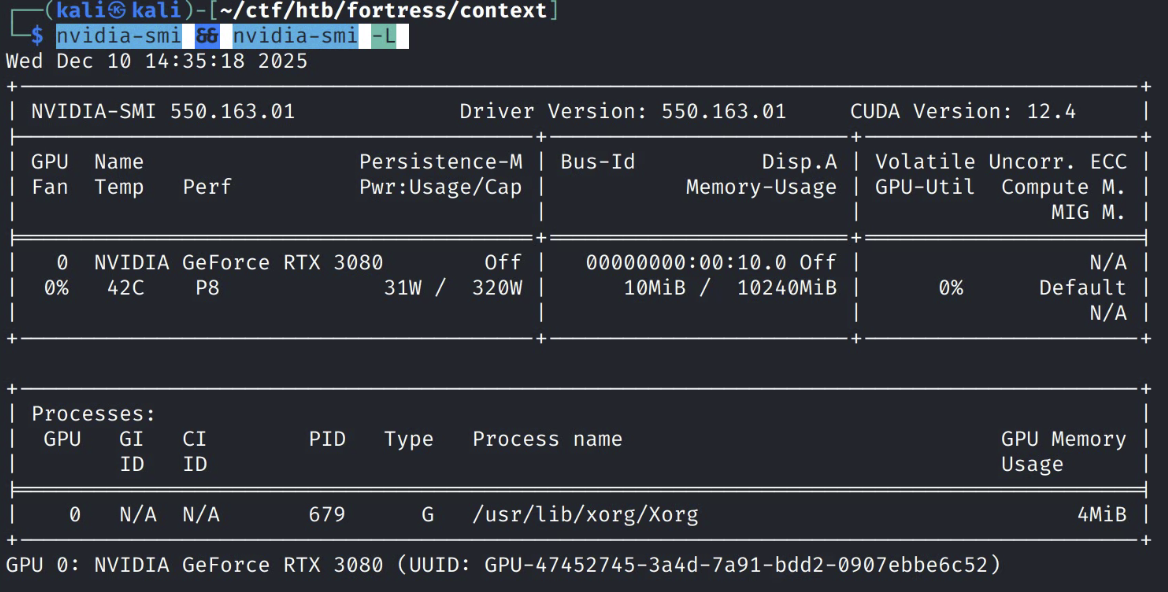

  5. run nvidia-smi && nvidia-smi -L to check nvidia gpu & driver loaded properly 412dd8ed4572fa20ee966d4989184d7f.png

Troubleshooting Link to heading

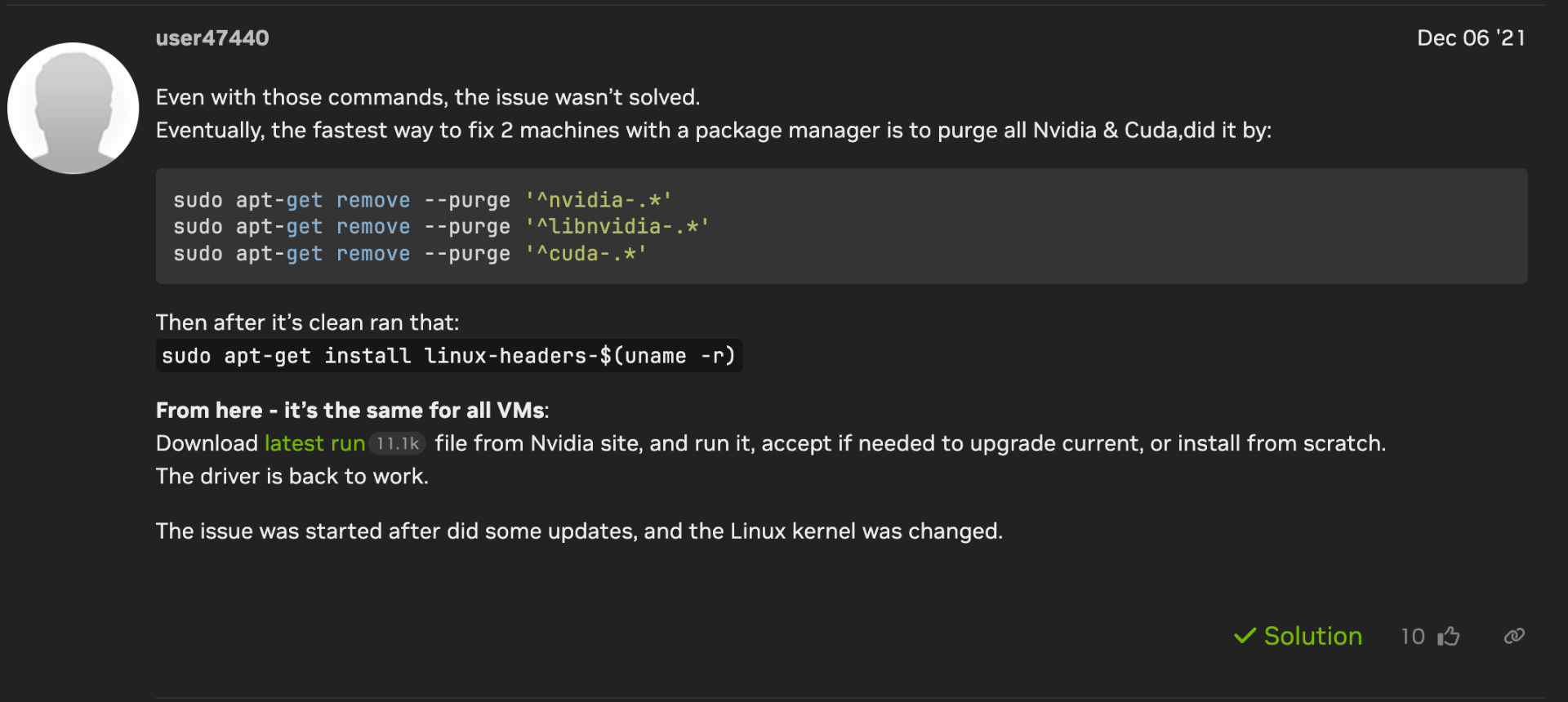

  1. Sometime shit happends and this produced NVIDIA-SMI has failed because it couldn't communicate with the NVIDIA driver. Make sure that the latest NVIDIA driver is installed and running. Purge all driver, rerun kernel source install, reboot then reinstall nvidia driver. 7e9b37c05285f242a72bd39840ce1ace.png Source
sudo apt remove --purge '^nvidia-.*'
sudo apt remove --purge '^libnvidia-.*'
sudo apt remove --purge '^cuda-.*'

sudo apt install linux-headers-$(uname -r)
  1. Nvidia RTC error on hashcat. sudo apt install nvidia-cuda-toolkit to solve this
